ULTRASHIELD DECKING
The eco-friendly, durable and premium quality alternative to wooden/plastic decking.
Durable
Easy To Maintain
Eco Friendly
Built To Last

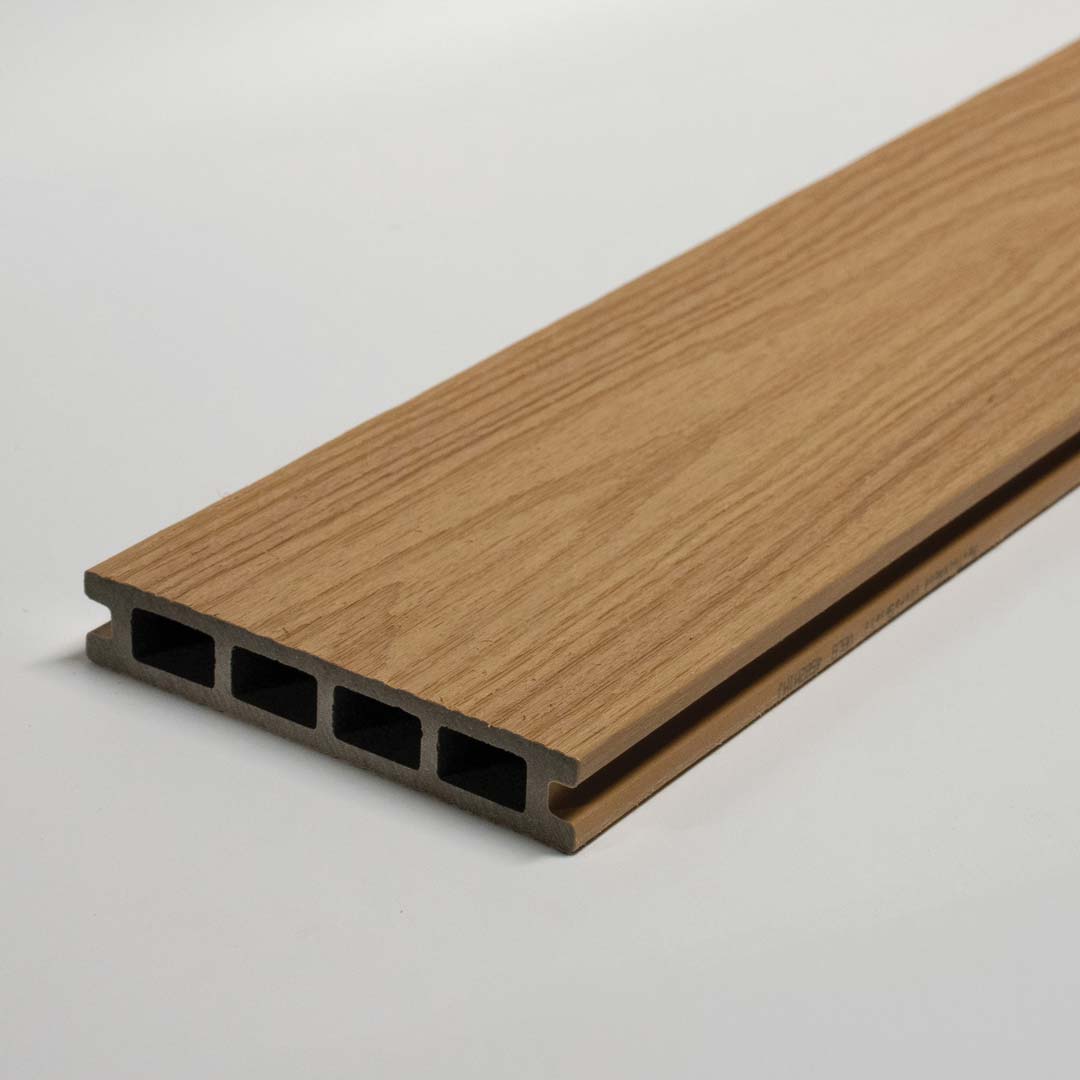

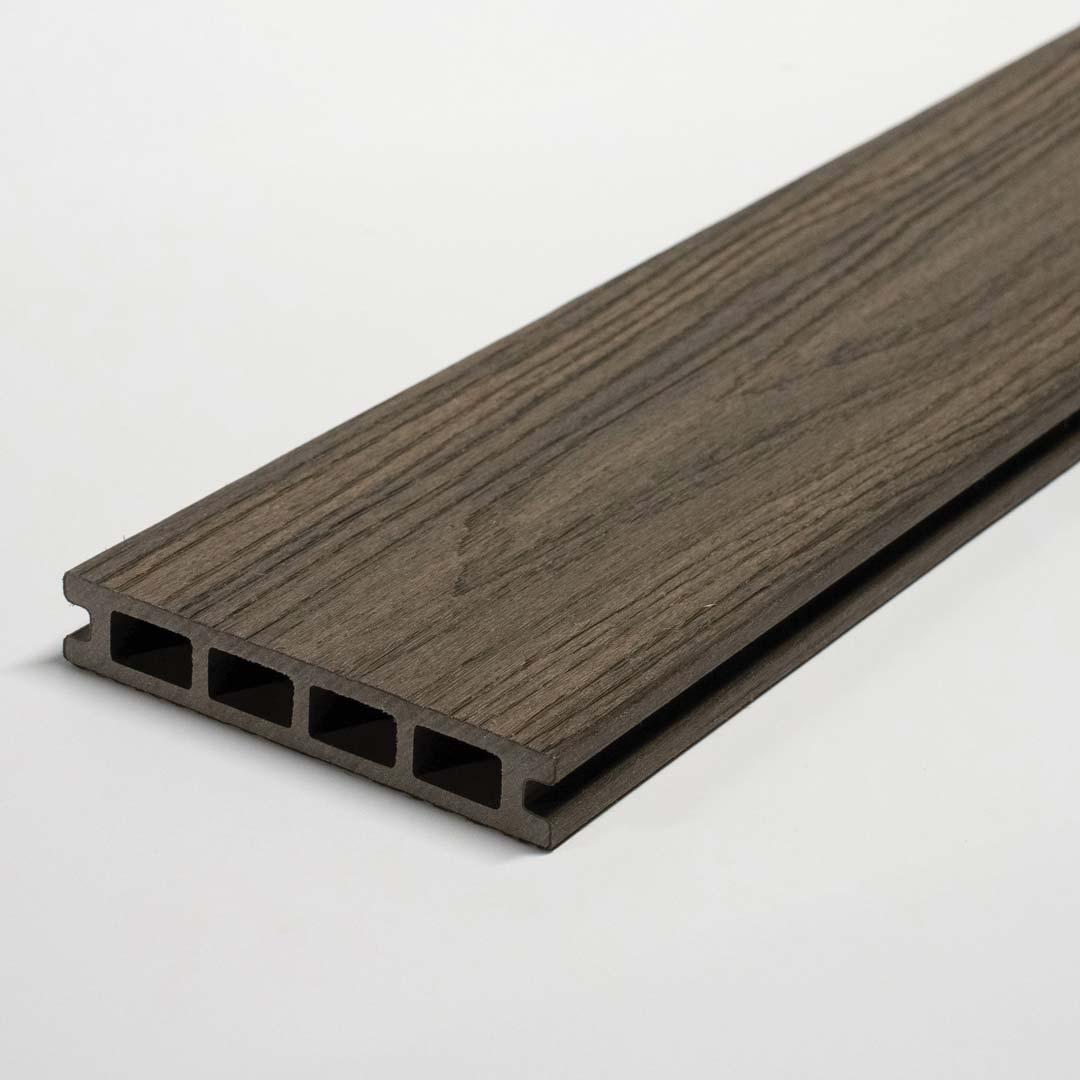

UltraShield decking

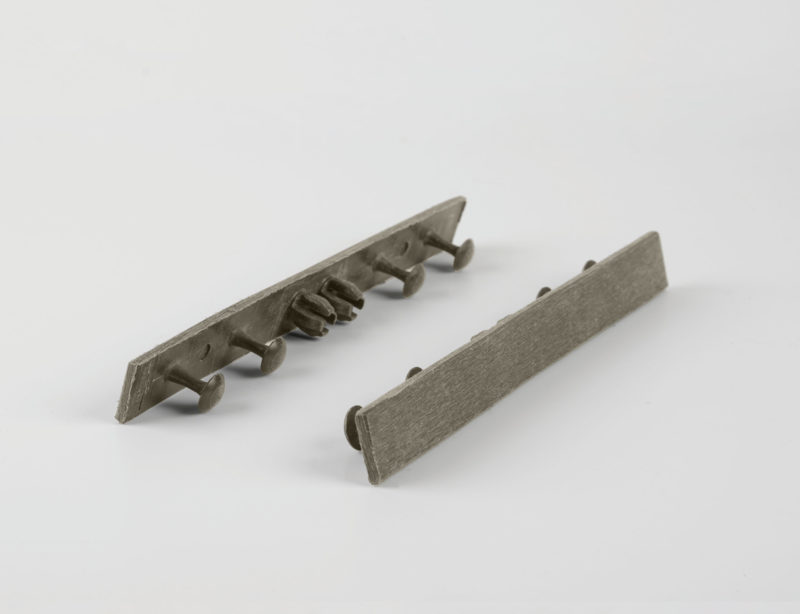

UltraShield Accessories
Walnut
Installation Instructions
Key points on how to fit your composite decking correctly &
How to avoid unnecessary installation errors.
Important points to consider before installing your composite decking
The soil will retain a lot of moisture and this will affect your decks performance. You need to remove the soil and then stone the area below your deck. You also need to ensure the area is free draining. If your deck is being raised by more than 1m and the area is being left completely open underneath the ground type is less important.
Similar to the reasons mentioned above for soil, it will have a negative affect on your substructure and deck boards performance. If in a balcony area, it may be a sign that there may be a blocked drain.
Your deck will get much less sun light and will be more prone to being damp and wet for longer. If you are fitting in a north facing area, your deck will require more regular cleaning.
If you fit your deck flat, the water will not be able to drain off your deck boards easily and your deck will remain wet for much longer periods after it rains. This will cause your deck to catch more dirt and will also encourage over time mould growth to develop.
The area under your deck will become damp and this may cause your substructure to rot or corrode over time, the decking will also expand and contract a lot more as the excess moisture will pass into the decking boards. Your substructure therefore needs ventilation for 2 reasons.
Composite decking will expand and contract as the climate changes. If there is no room for the boards to expand, they will push against each other or the wall and eventually they will develop cracks.
The reason you use a double joist where board ends meet is that the water can drain off the board ends freely and fall to the ground. The board ends are also properly supported with clips. If the board ends are left resting on the joist there is the risk that they will absorb excess moisture causing the boards ends to swell and expand.
The boards may gradually slide along the normal clips and leave a big gap at one end. The teeth on the locking clip help control the boards movement, it is vital that one clip with teeth catches each board close to its mid-point.
This will create a pressure point and the boards may crack over time as there may not be enough expansion room. Handrail systems should always be fixed to the substructure and not through the deck boards.
Your deck will remain fine in the short term but over time the deck will collect dirt and pollen and eventually as the deck gets dirtier there will be some green or black mould growth. Your deck never needs to be painted or sealed but it is important to have a cleaning programme.

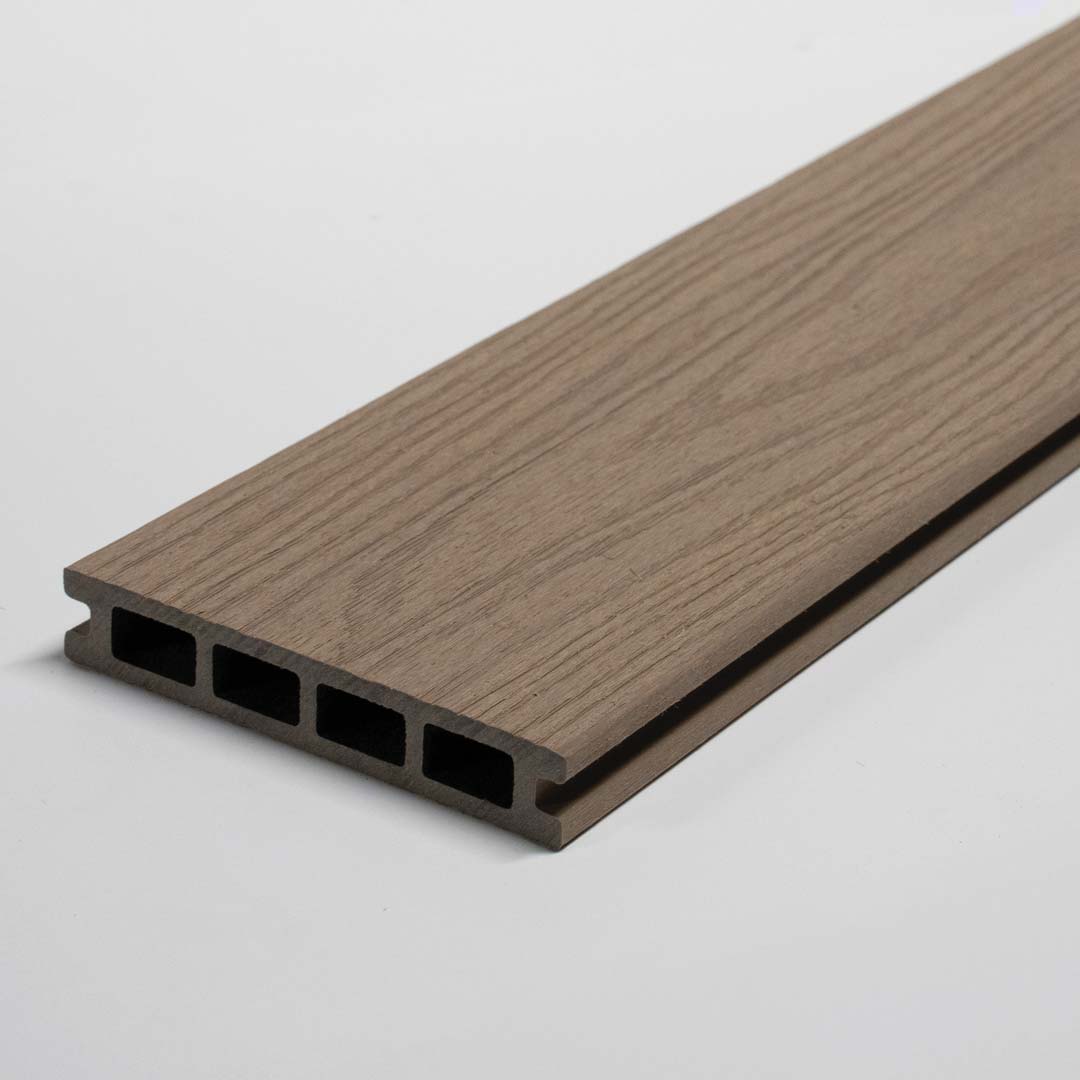

UltraShield Naturale – Tech Specs
Board width x depth | 138 x 23mm |
Board length | 3.6m Lengths |
m2 Per length | 0.512m2 |
Board | Recycled composite materials |
Finish | Woodgrain Textured, Smooth Grain |
For use on balconies, walkways, roof terraces, leisure areas and patios |
TEST ITEMS | STANDARD | RESULT | |
Slip resistance – Wet |
EN BS 7976:2 |
Smooth: 40PTV Woodgrain: 38PTV |
|
Impact Resistance |
EN15534-1 |
|
0.14mm |
Reaction to Fire |
EN150 9239-1 |
CFL-S1 | |
Creep Behaviour |
Mean ΔS:≤ 10mm
Max. ΔS:≤ 13mm Mean ΔSr:≤ 5mm |
|
Mean ΔS: 4.70mm
Max. ΔS: 5.26 mm Mean ΔSr: 2.81 mm |
Linear Thermal Expansion |
EN15534-1 |
32.2 × 10-6/ °C |
Experience the difference of Composite Decking
Discover the beauty and resilience of Whiteriver Group’s composite decking. Our meticulously engineered boards combine the warmth of natural wood with the unmatched durability of recycled materials. Expect long-lasting color, weather and stain resistance, and a low-maintenance surface designed for years of outdoor enjoyment.
Decking Calculator
Planning a beautiful new deck for your outdoor space? We’re thrilled to announce the launch of our all-new decking calculator, designed to take the guesswork out of your project.
